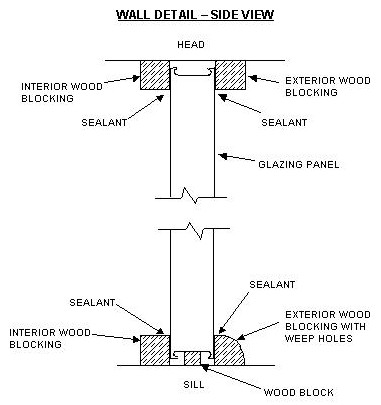

SUGGESTED GLAZING PANEL INSTALLATION DETAILS

Click Here For Glazing Panel Installation Aids

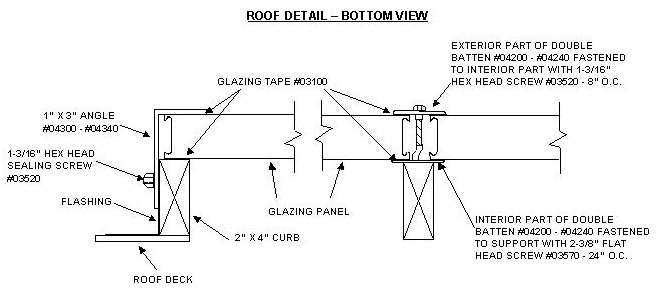

NOTE: DO NOT USE HORIZONTAL JOINTS FOR ROOF APPLICATIONS!

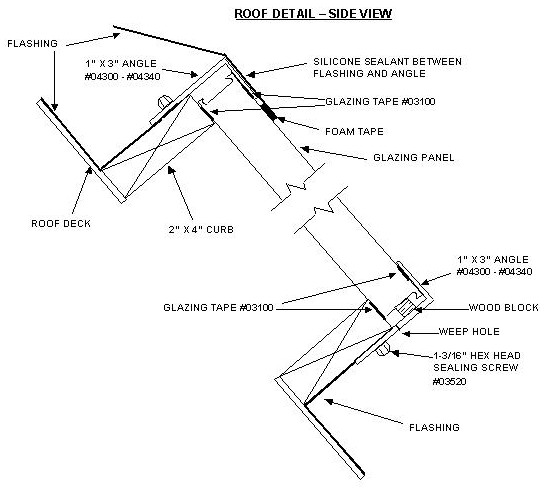

1/2" To 5/8" spacing must be allowed between panels for thermal expansion.  A flexible sealant should be used where the panel is in contact with other materials and parts of building to insure a waterproof installation.  To prevent condensation build-up between panels and aluminum closure angles, weep holes (1/8" diameter) should be drilled in LOWER 1" x 3" angle.  Two weep holes per panel are sufficient.
