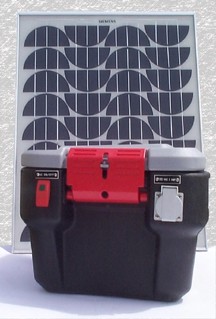

The SunWize� Portable Power Generator (PPG) is a transportable source of battery power. This fully-integrated unit quietly generates DC or AC electricity to run small appliances such as lights, small televisions, fans, laptop computers and small power tools.
The SunWize� Portable Power Generator is designed to be recharged from either a solar module or an optional AC battery charger. A controller monitors the charge to avoid under and overcharging the battery and a meter displays how much charge is in the battery. The AC model includes an internally mounted inverter that changes DC electricity to AC electricity for use with most appliances. The externally mounted rocker switch lets you turn the inverter off and on as needed. The AC unit includes one 120VAC socket with an outdoor cover as well as 2�7.5A, 12 VDC sockets mounted in the end panel.
The base unit is also available in a DC version with two DC sockets for 12V loads and a high-current DC output version with an additional 30A DC socket for external inverter connections. The deep-cycle, marine grade battery and solar module are optional. The SunWize Portable Power Generator never needs fuel, is absolutely silent, and requires little maintenance. This portable generator, 73 lbs with a battery, is housed in a weather-resistant, polyurethane enclosure with lockable handles for carrying. All you need to do is plug the solar panel into the generator to charge the battery. Once the battery is charged, you are ready to go!
Features:
Completely assembled and factory tested
Portable
and ready to use
Simple �plug and go� operation
External inverter switch
(AC Model only)
PV module mounting accessories
120VAC socket with outdoor
cover (AC Model only)
Internal 150-watt, 120VAC inverter (AC Model
only)
Battery meter indicates state-of-charge
Sockets separately
fused
Corrosion and weather-resistant, rugged,
non-breakable
enclosure
Designed for DC charging by solar panels
2 DC sockets for 12V
loads up to 90W each
Environmentally friendly
The Sunwize Portable Power Generator is available in 3 basic models - a 12 amp AC version with a 150 watt inverter, and 12 amp DC and a 30 amp DC version. All base units include a 20 ft., 12/2 cable with a DC input plug. You provide your own battery and module.
| Model |
Controller |
Inverter |
Dimensions |
Weight |
Price (US) |
| Base AC |
12 amp |
Internal 150 watt |
21" x 15" x 12" |
10 lbs. |
$669.00 |
| Base DC |
12 amp |
N/A |
21" x 15" x 12" |
9 lbs. |
$519.00 |
| Base DC 30 |
30 amp |
N/A |
21" x 15" x 12" |
9 lbs. |
$639.00 |
For your convenience, the SunWize� Portable Power Generator is also available as a complete package in three AC versions and five DC versions.
| Model |
Controller |
Inverter |
PV Module |
Battery |
Dimensions (lbs) |
Weight |
Price |
| AC 40/65 |
12 amp |
Internal 150 watt |
40 watt |
65 Ah |
21" x 15" x 12" |
53 |
$1,149.00 |
| AC 50/100 |
12 amp |
Internal 150 watt |
50 watt |
100 Ah |
21" x 15" x 12" |
74 |
$1,299.00 |
| AC 75/100 |
12 amp |
Internal 150 watt |
75 watt |
100 Ah |
21" x 15" x 12" |
74 |
$1,499.00 |
| DC 40/65 |
12 amp |
N/A |
40 watt |
65 Ah |
21" x 15" x 12" |
52 |
$979.00 |
| DC 50/100 |
12 amp |
N/A |
50 watt |
100 Ah |
21" x 15" x 12" |
73 |
$1,099.00 |
| DC 75/100 |
12 amp |
N/A |
75 watt |
100 Ah |
21" x 15" x 12" |
73 |
$1,329.00 |
| DC30 50/100 |
30 amp |
N/A |
50 watt |
100 Ah |
21" x 15" x 12" |
73 |
$1,249.00 |
| DC30 75/100 |
30 amp |
N/A |
75 watt |
100 Ah |
21" x 15" x 12" |
73 |
$1,469.00 |
| Model |
Description |
Price |
|
Universal AC Battery Charger |
110-240 VAC, 50/60 Hz with DCI-PPG plug |
$95.00
|
| External US-Voltage Inverter | Modified sine-wave, 250W/120VAC/60Hz with 30A plug |
$159.00 |
| External Euro-Voltage Inverter | Modified sine-wave, 250W/230VAC/60Hz with 30A plug |
$175.00 |
| External Sine-Wave Inverter | True sine-wave, 300W/120VAC/50Hz with 30A plug |
$439.00 |
| 40 W Module | Additional 40 W module with 2 module interconnect kit |
$395.00 |
| 50 W Module | Additional 50 W module with 2 module interconnect kit |
$453.00 |
| 75 W Module | Additional 75 W module with 2 module interconnect kit |
$689.00 |
| TL Light Fixture 8 W | Fluorescent, 8 W with 20 ft. cord and DCL-PPG plug |
$48.00 |
| TL Light Fixture 15 W | Fluorescent, 15 W with 20 ft. cord and DCL-PPG plug |
$52.00 |
| DC Load Plug (male) | 12V, 10A maximum, for wiring additional DC load equipment |
$3.00 |
| DC Load Plug (female) | 12V, 10A maximum, for wiring additional DC load equipment |
$10.00 |
