Flat Bottom Algae Tanks

Cone Bottom Tanks

Freestanding Conical Bottom Tanks

Knock down Tanks

Biofilter Tanks

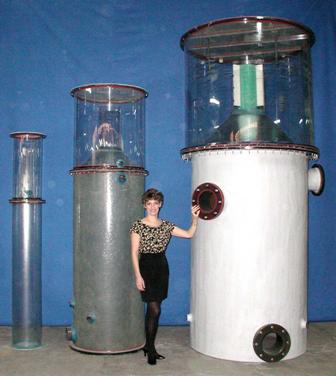

Protein Skimmers

Transparent Fiberglass Tanks

Solar Components has been manufacturing 90% visual light-transmitting fiberglass tanks for over 30 years. These tanks are made from our specialized material Sun-Lite®.

*High Light transmission accelerates the growth of algae or other organisms.

*You can see through the sidewall to inspect the contents.

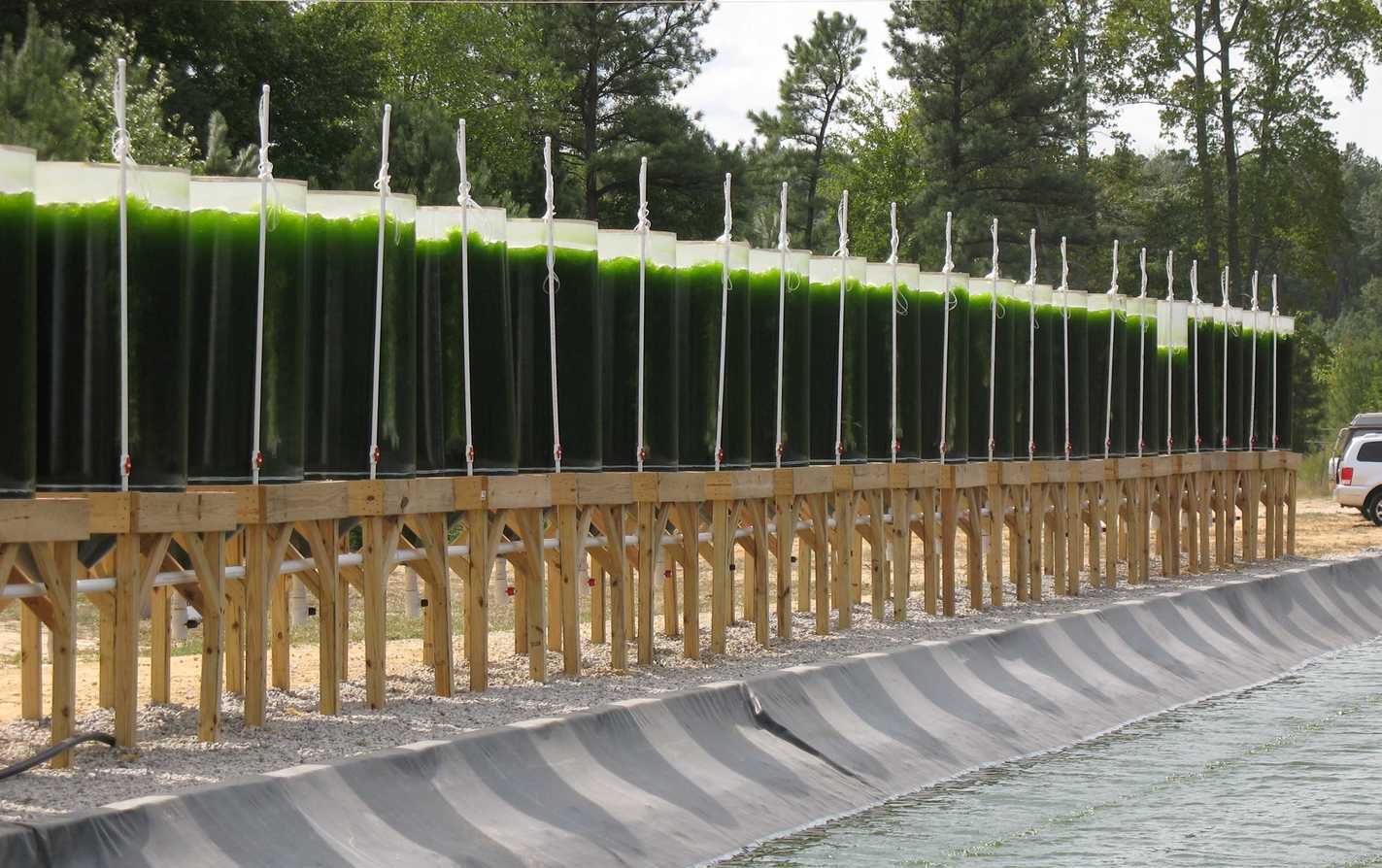

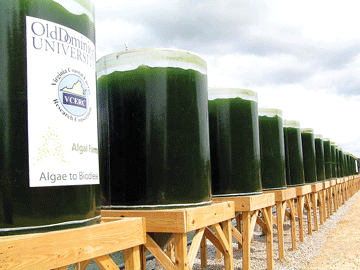

These tanks have been in use worldwide for many diversified applications from growing algae for conversion to bio-fuels or algae for "feed" in the aquaculture industry. The tanks are also being used as "growth chambers" for culturing shrimp, rotifers, clams, lobsters, scallops, finfish, etc. We manufacture flat bottom tanks, conical bottom tanks, knock down tanks, biofilters and protein skimmers. Our product is extremely light weight, shatterproof, non-corrosive, 90% transparent, economical, and available in custom sizes.

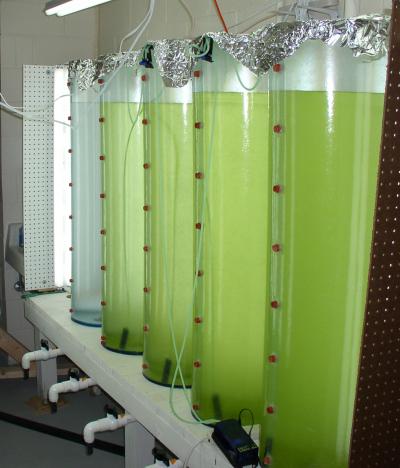

FLAT BOTTOM TANKS ALGAE GROWING TANKS

Our flat bottom tanks are available from 12" diameter to 20' diameter and up to 5' tall. These unique transparent tanks are ideal for algae cultivation, finfish growout, hydroponics, biological wastewater treatment, and other general containment needs. Diameters may vary slightly for nesting purposes during shipping.

Flat Bottom Tanks

TO ORDER CALL PENTAIR AQUATIC ECOSYSTEMS 407-886-3939

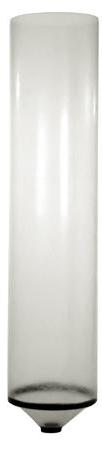

CONICAL TANKS

Our conical tanks provide total fluid drainage and are ideal for artemia or brine shrimp culture. All units come standard with a two inch female threaded PVC fitting. Cone pitches available: 20, 45, and 60 degrees. Sizes range from 12" to 60" in diameter and up to 10' tall.

Conical Tanks

TO ORDER CALL PENTAIR AQUATIC ECOSYSTEMS 407-886-3939

NEW!!!

Free Standing Conical Bottom Tanks

NO MORE HANDMADE 2 X 4 TANK STANDS
SKIRTED TANK
NO ASSEMBLY, SHIPPED COMPLETE
45 TO 30 DEGREE CONICAL BASE
CUT IN ACCESS PORT FOR HARVESTING
REINFORCED BOTTOM AND TOP EDGES
SPECIAL SIZES AVAILABLE ON REQUEST
90% LIGHT TRANSMISSION

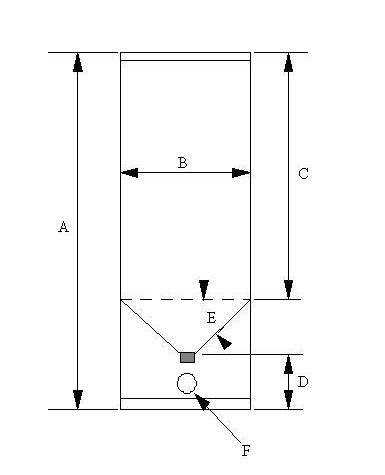

Item Tank Size

Gallons

A

B

C

D

E

F

11051
12" x 4'

25

63"

12"

48"

10"

45°

5"

11052
18" x 5'

68

80"

18"

60"

12"

45°

5"

11053
24" x 5'

129

83"

24"

60"

12"

45°

5"

11054
36" x 5'

291

82"

36"

60"

12"

30°

5"

11055
48" x 5'

500

87"

48"

60"

14"

30°

5"

TO ORDER CALL PENTAIR AQUATIC ECOSYSTEMS 407-886-3939

Item	Tank Size	Gallons	A	B	C	D	E	F
11051	12" x 4'	25	63"	12"	48"	10"	45°	5"
11052	18" x 5'	68	80"	18"	60"	12"	45°	5"
11053	24" x 5'	129	83"	24"	60"	12"	45°	5"
11054	36" x 5'	291	82"	36"	60"	12"	30°	5"
11055	48" x 5'	500	87"	48"	60"	14"	30°	5"
