Sun-Lite insulated panels are factory prefabricated
panels designed expressly to transmit maximum solar radiation, yet
insulate! They are lightweight, shatterproof, and require minimum
maintenance for long term performance. The panels are 1-1/2" thick
and are made from our famous Sun-Lite® glass fiber reinforced sheet
used in thousands of solar applications worldwide. Engineered to
resist the rigors of high sunlight and heat exposure fatal to most
glazing materials. Unlike thermoplastic glazing, Sun-lite resists
long wave radiation (greenhouse effect.) Sun-Lite® insulated panels
in stock sizes. Traditional wood, or our own aluminum Clamp-tite
system can be used for rapid installation. So if your designing a

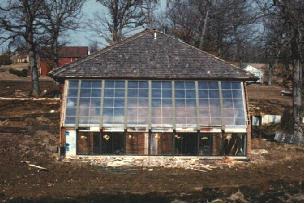

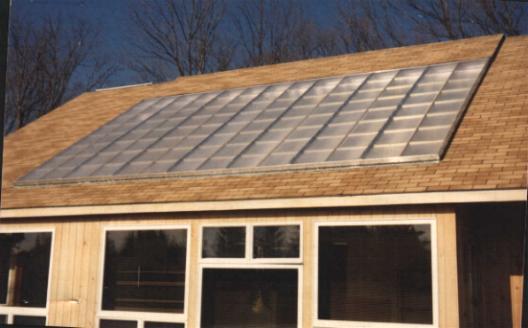

solar greenhouse, site built collector, or require the most
efficient solar window for your passive system, insist on Sun-Lite®
insulated glazing panels.
Available in Sun-Lite® Face sheets at 84%
Light Transmission or Translucent
White Face Sheets at 20% Light Transmission, (great for interior
shoji screens)
These items must ship by
motor freight. Please call (603) 668-8186 for freight
quote.
SIZES
AND
PRICING 1-1/2" X 2' X
8'_____________#02150_______$ 192.00 (Call for freight
quote) 1-1/2" X 4' X
4'_____________#02080_______$ 192.00 (Call for freight
quote) 1-1/2" X 4' X
6'_____________#02090_______$ 288.00 (Call for freight
quote) 1-1/2" X 4' X
8'_____________#02100_______$ 384.00 (Call for freight
quote) 1-1/2" X 4' X
10'____________#02110_______$ 480.00 (Call for freight
quote) 1-1/2" X 4' X
12'____________#02120_______$ 629.00 (Call for freight
quote) 1-1/2" X 4' X
14'____________#02130_______$ 729.00 (Call for freight
quote)
Installation
Aids
These items must ship by
motor freight. Please call (603) 668-8186 for freight
quote.
2" Top
Batten. Used for clamping and sealing the seam
between two1/2" Sun-Lite Glazing Panels. Inner edge serrated
for holding glazing tape (#03100) in place.
Top Batten 8'____#04100____$13.65 10'___#04110____$17.85 12'___#04120____$20.48 14'___#04130____$23.65 16'___#04140____$27.30
2"
Double Batten. Used for clamping and sealing
the seam between two Sun-Lite 1-1/2" Glazing Panels. Inner
surface is serrated for tight sealant attachment of Glazing
Tape (#03100).
Glazing Tape
Seals Glazing Panels Made of tough butyl based elastic
compound with a gauze reinforcement to provide
excellent dimensional stability. Excellent initial tack with good
adhesion to most clean surfaces. Develops a strong bond in
service with excellent resistance to water and water vapor. The
materials remain plastic indefinitely and has a service
temperature range of -30 degrees F to 200 degrees F. Jet
Black color. Suggested for use on all glazing panel
installations.
Glazing Tape 1/8" Thick x 3/8" Wide x
79' Long Roll______
#03100_____$19.95
Hex Head Sealing Screw These rugged
#14 screws are all cadmium plated with neoprene washers for self
sealing and prolonged exterior use. 1-3/16" long used
to fasten top section to bottom section of aluminum double
batten (#04100-#04140). Also used to fasten aluminum angle
(#04300-04340) to curb. 2-3/8" long screws used for fastening 2"
top batten (#04100-#04140) directly to support in 1/2"
Sun-Lite Glazing Panel installations.
1-3/16" package of 20_____#03520_____$ 7.35
2-3/8" package of 20______#03530_____$10.50
Flat Head Screws Stainless steel with
phillips slot in flat head. Good for a variety of installation
needs. 2-3/8" size is used for attaching bottom section of the
aluminum double batten (#04300-#04340) to wood support.
1" package of
20___________#03550_________$ 4.25
1-3/16"
package of 20_______#03560_________$ 5.25
2-3/8" package of
20________#03570_________$ 6.35
3-1/2" package of 20________#03580_________$10.50
Kalwall® Weatherable Surface Kalwall
Weatherable Surface (KWS) is a two part air dried coating material
factory applied to the exterior of all Sun-Lite® HP fiberglass
reinforced polymer sheeting. It should be reapplied, usually every
10 years after initial installation, to restore the original
luster and finish which may have become dulled or roughened due to
prolonged exposure to weather, airborne pollutants, or chemicals in
the atmosphere. Apply with brush or roller. Coverage
approximately 150 square feet per gallon.
